Receiver Options

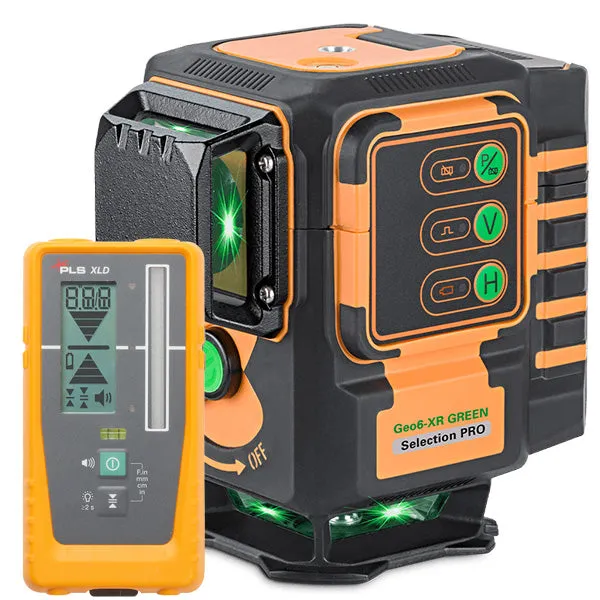

The PLS XLD is a digital mm receiver, which works with both a rotary and line lasers whether green beam or red beam. Its working range is, Rotary Radius: 200m and Line Radius: 75m. Its detection Height is 60mm.
Product Overview
A comprehensive solution for installation, refurbishment and maintenance
- 3x 360° highly visible green laser lines all perpendicular to each other

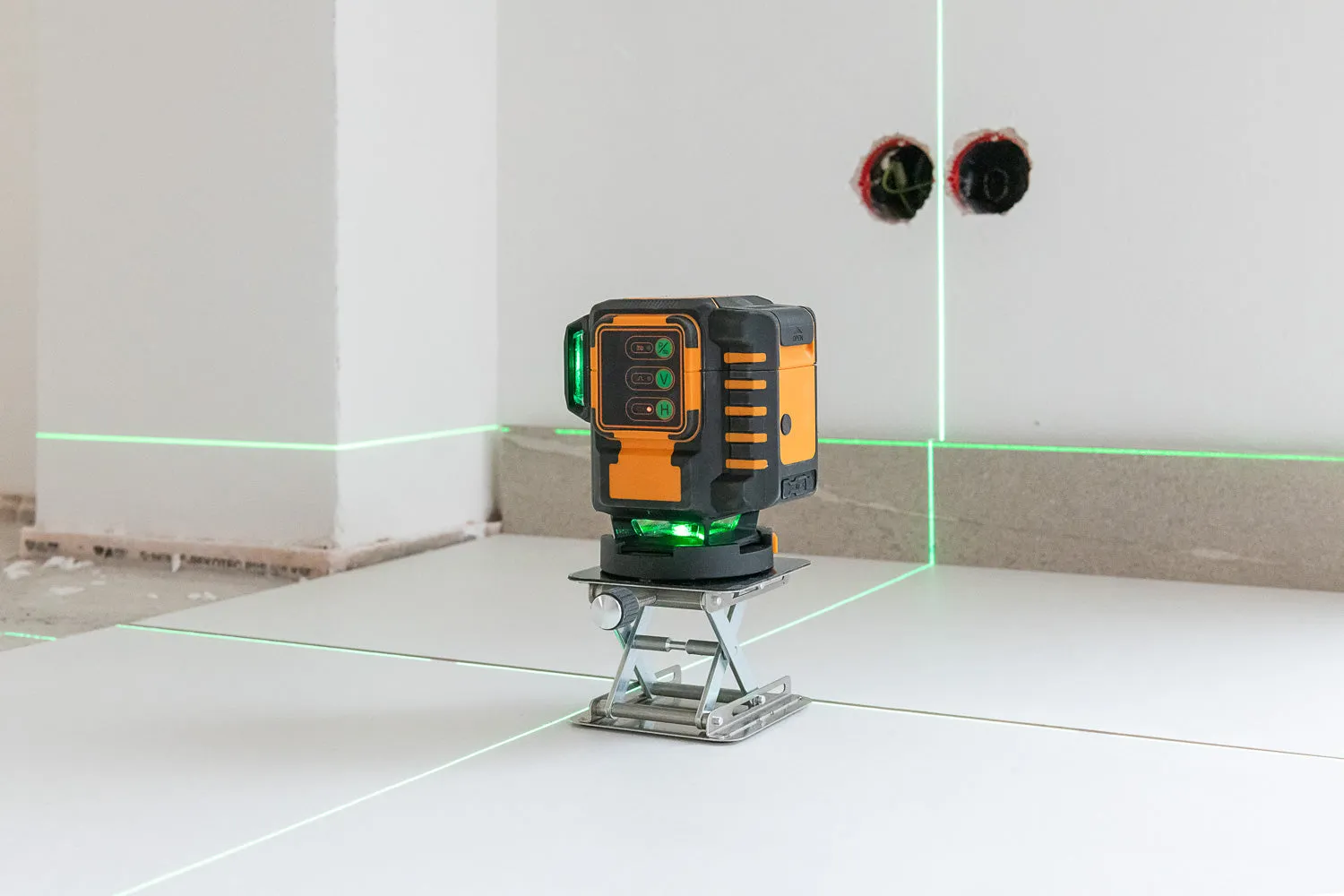

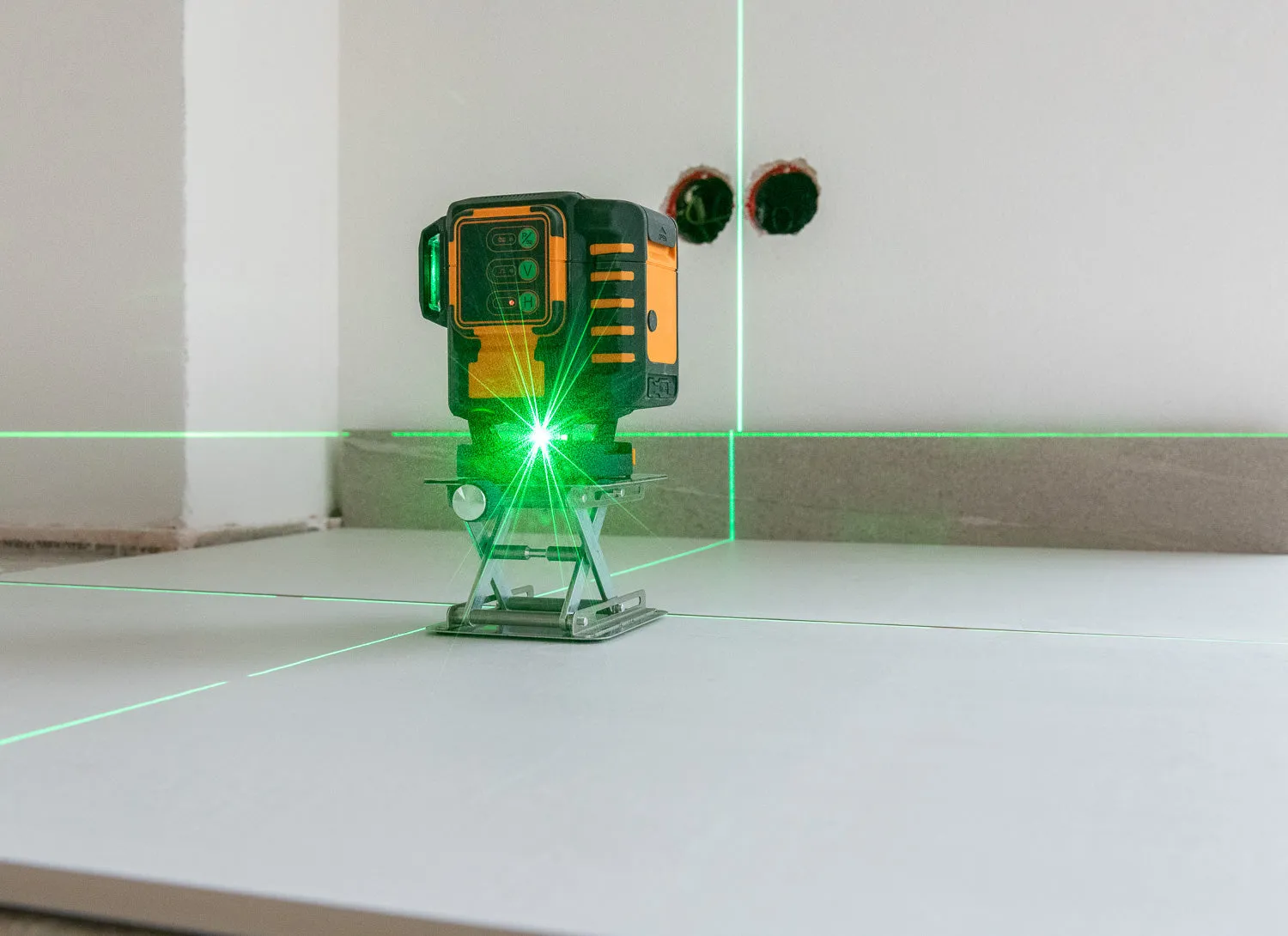

- Projecting right angles everywhere at the floor for straight and diagonal laying of tiles

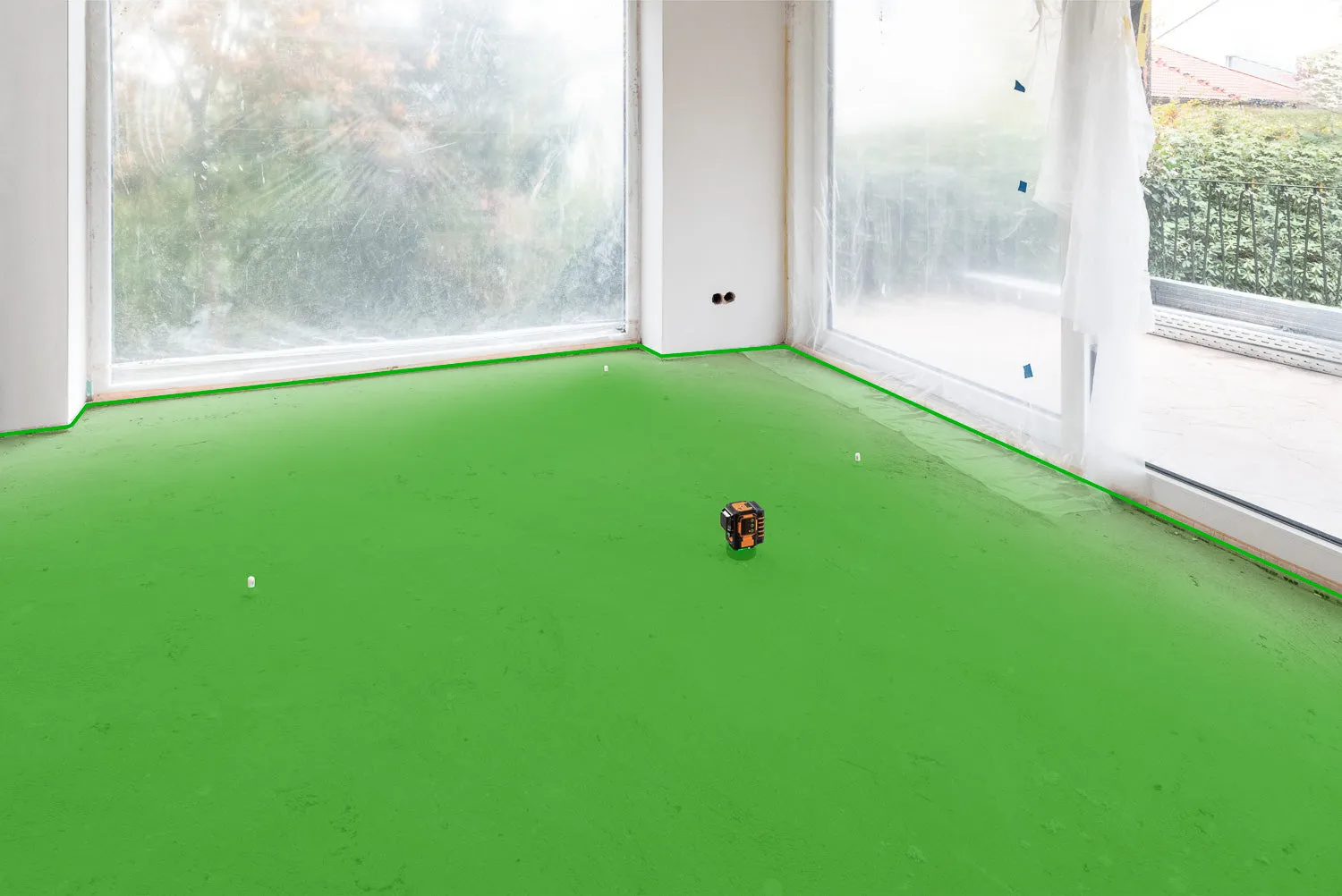

- Installation and verification of correct floor height

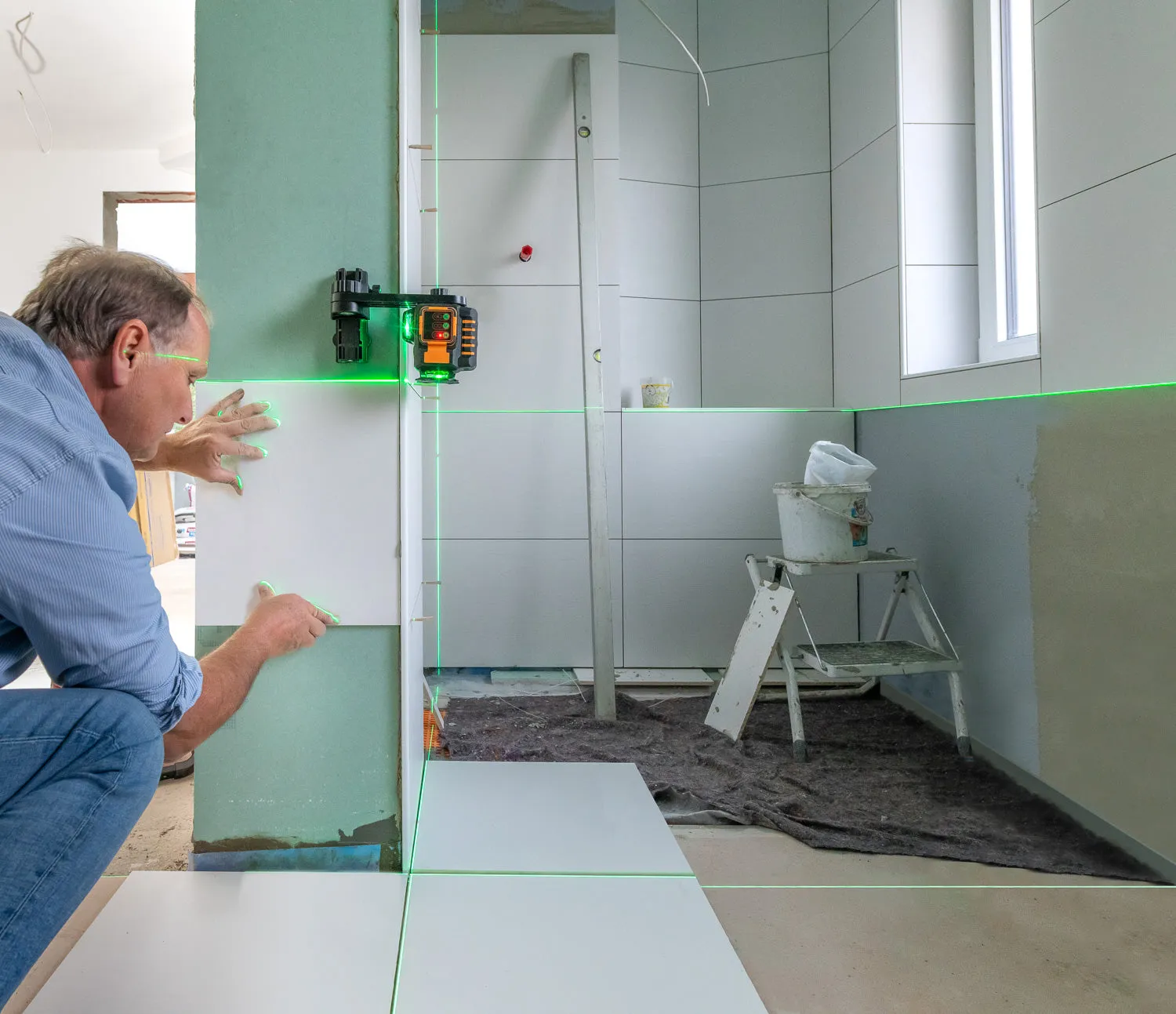

- Checking level, flatness and parallelism of walls and floors.
- 3 x 360° green laser lines - visible up to 40 m
- 6 mm minimum distance of the laser line to the wall
- 8 mm minimum distance of the laser line to the floor
- Height adjustable platform with a range from 25 to 85 mm for precise height control when setting out floor coverings
- 20 mm fixed height adaptor with 5/8“ thread
- Height adjustable wall-mount with swivel-mount support rail

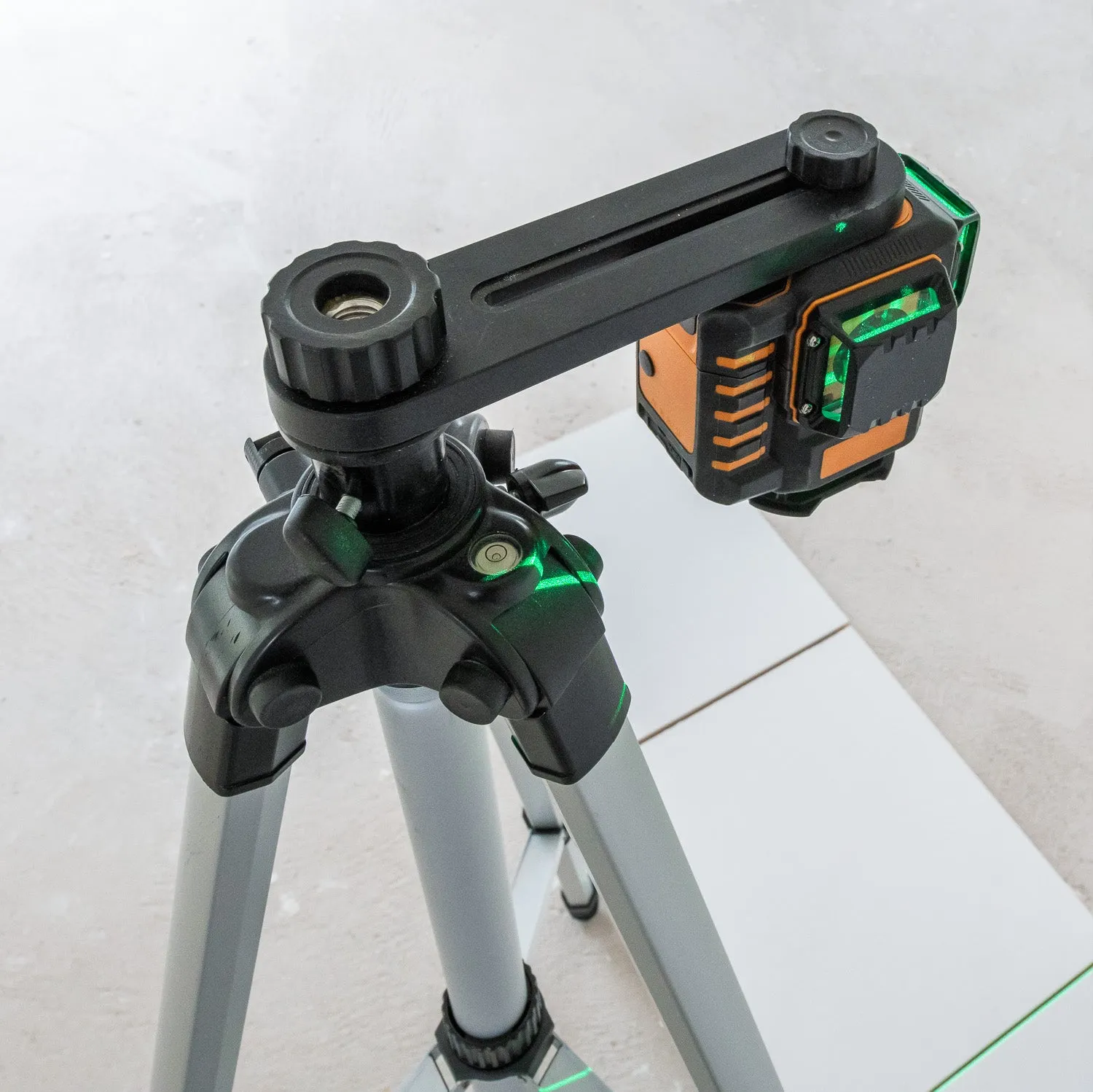

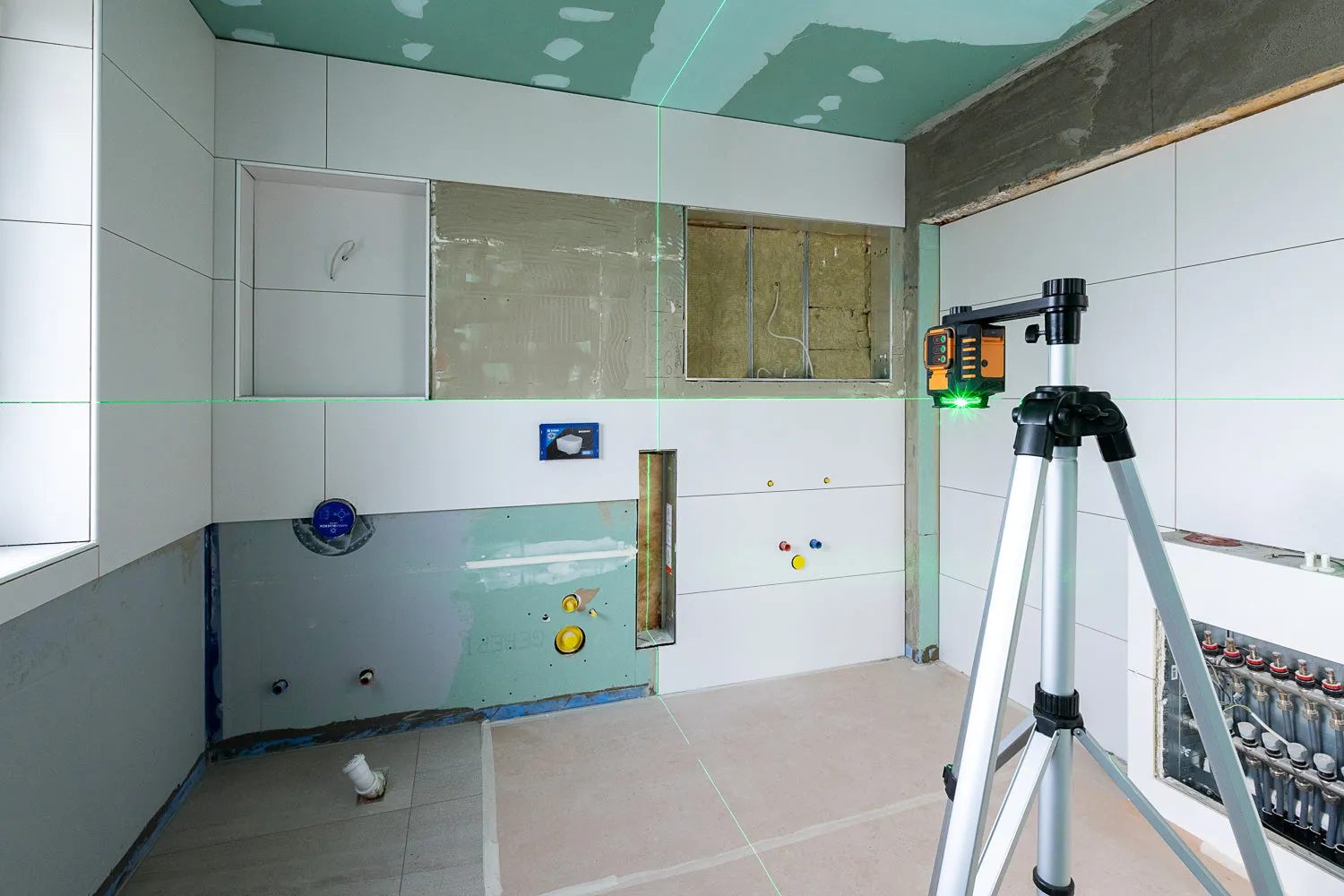

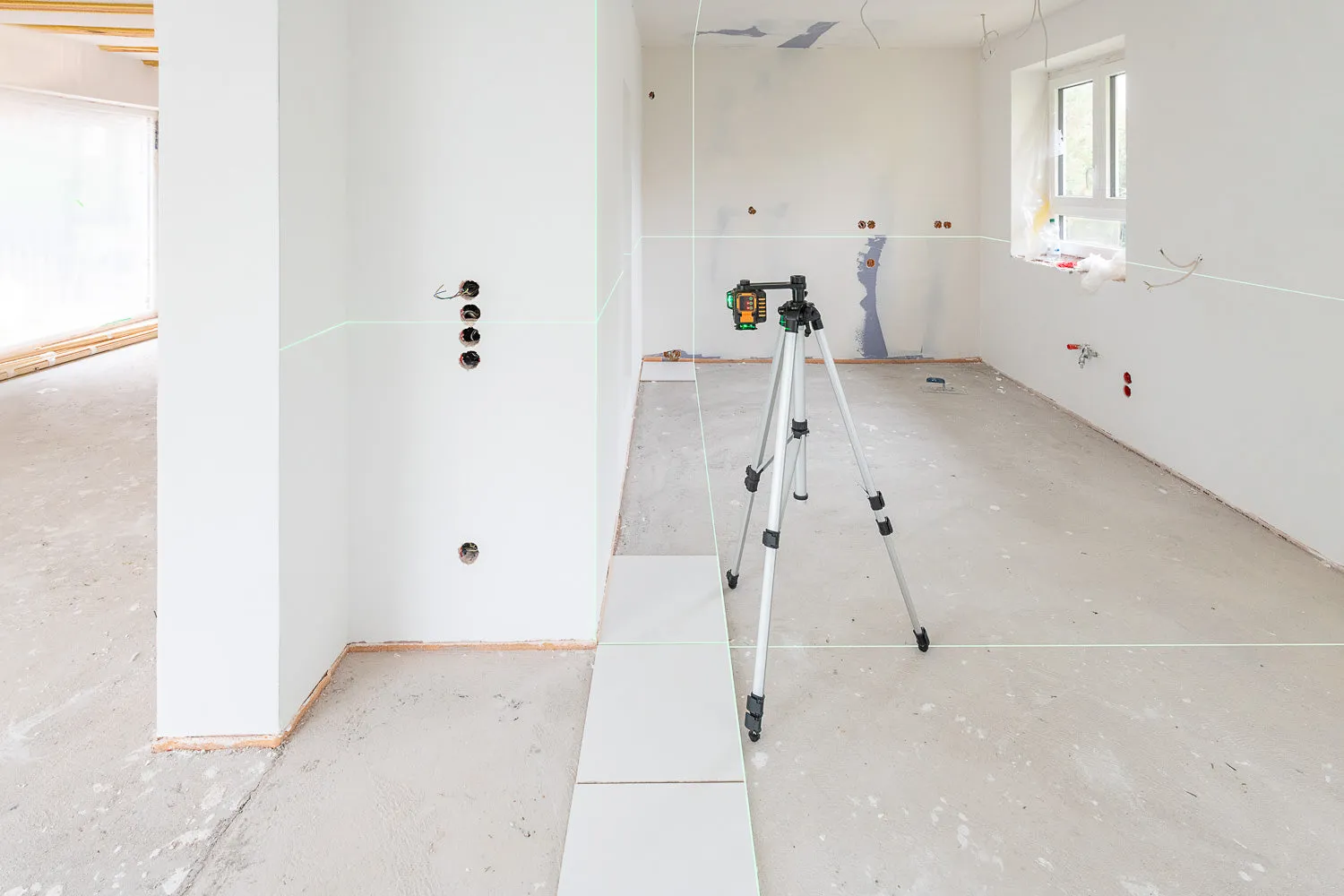

- Optimise floor tile layout with free-hanging tripod mount

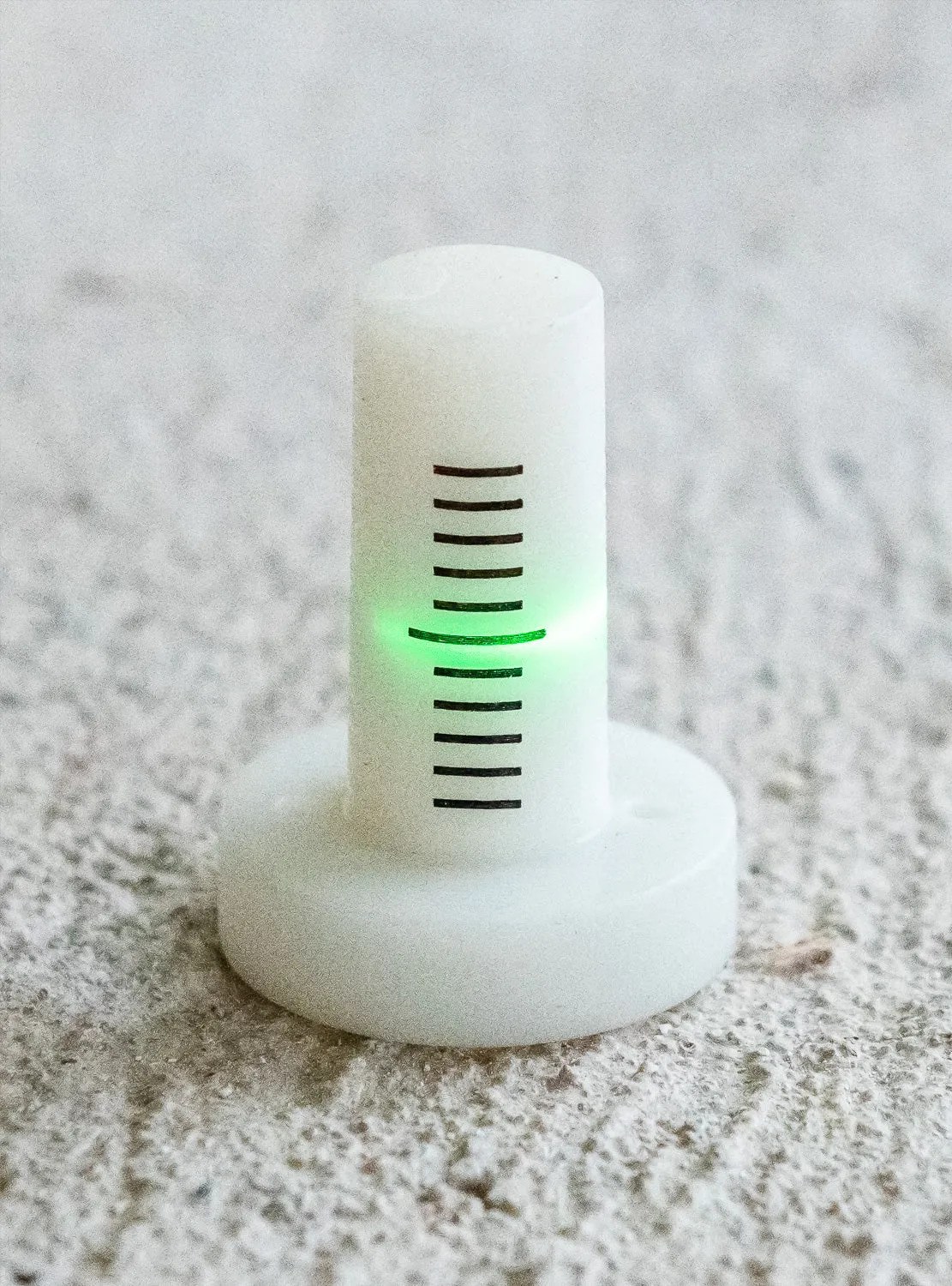

- Monitor and correct floor levels using the height measurement pins
- Pulse-function to extend working range with receiver (optional)
Features
-

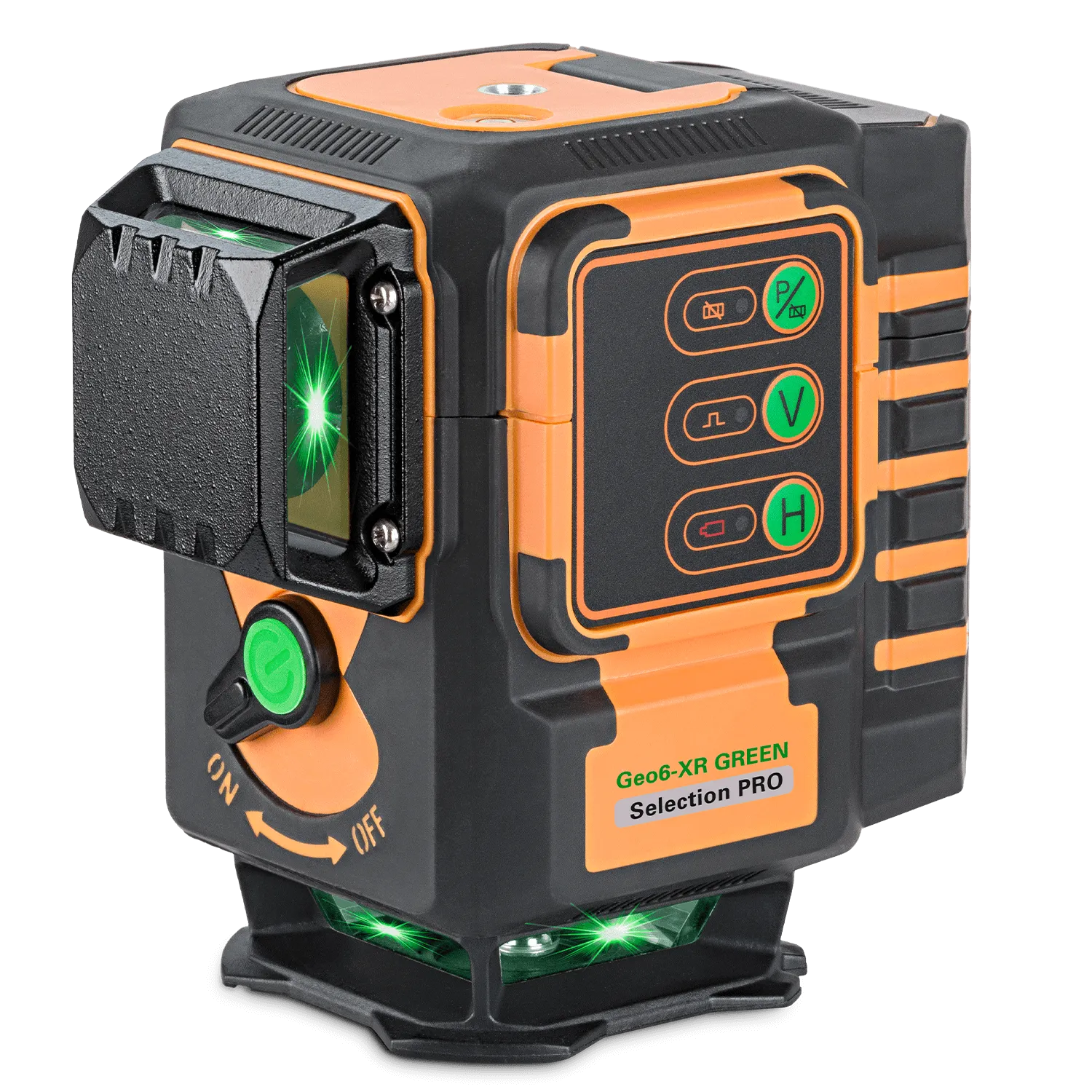

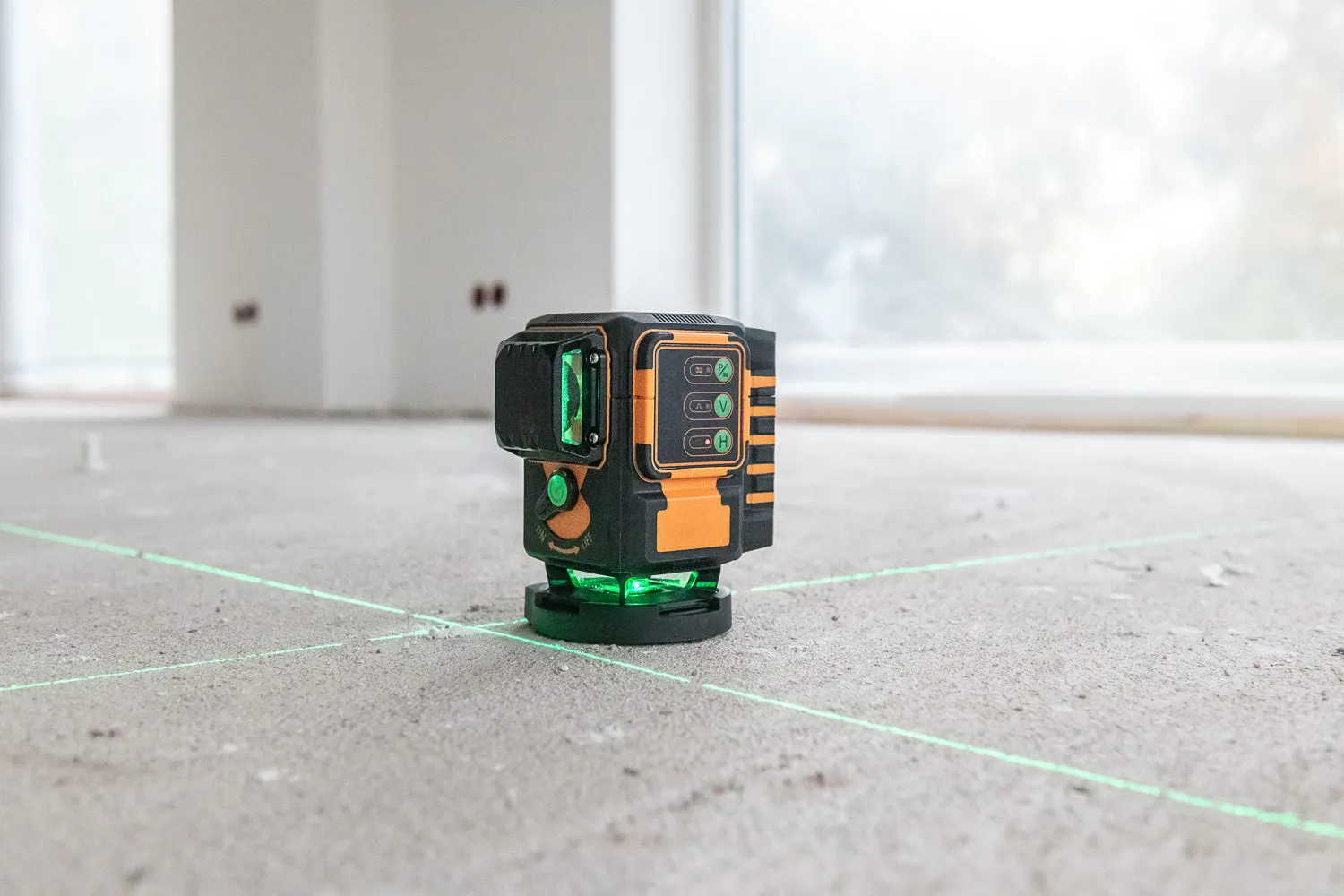

3 x 360°-Laser lines - form 6 laser crosses
-
Laser lines switchable separately
-
Plumbing function
-
Minimum laser line distance to floor 8 mm
-
Minimum laser line distance to wall 6 mm
-
Height adjustable platform from 25 to 85 mm
-
Wall-mount
-
Height and side adjustable
-
Can be fixed to a wall
-
Attachment to magnetic surfaces
-
Strap attachment
-
Visual and audible alarm when out of level
-
Self-levelling function can be locked for manual use
-

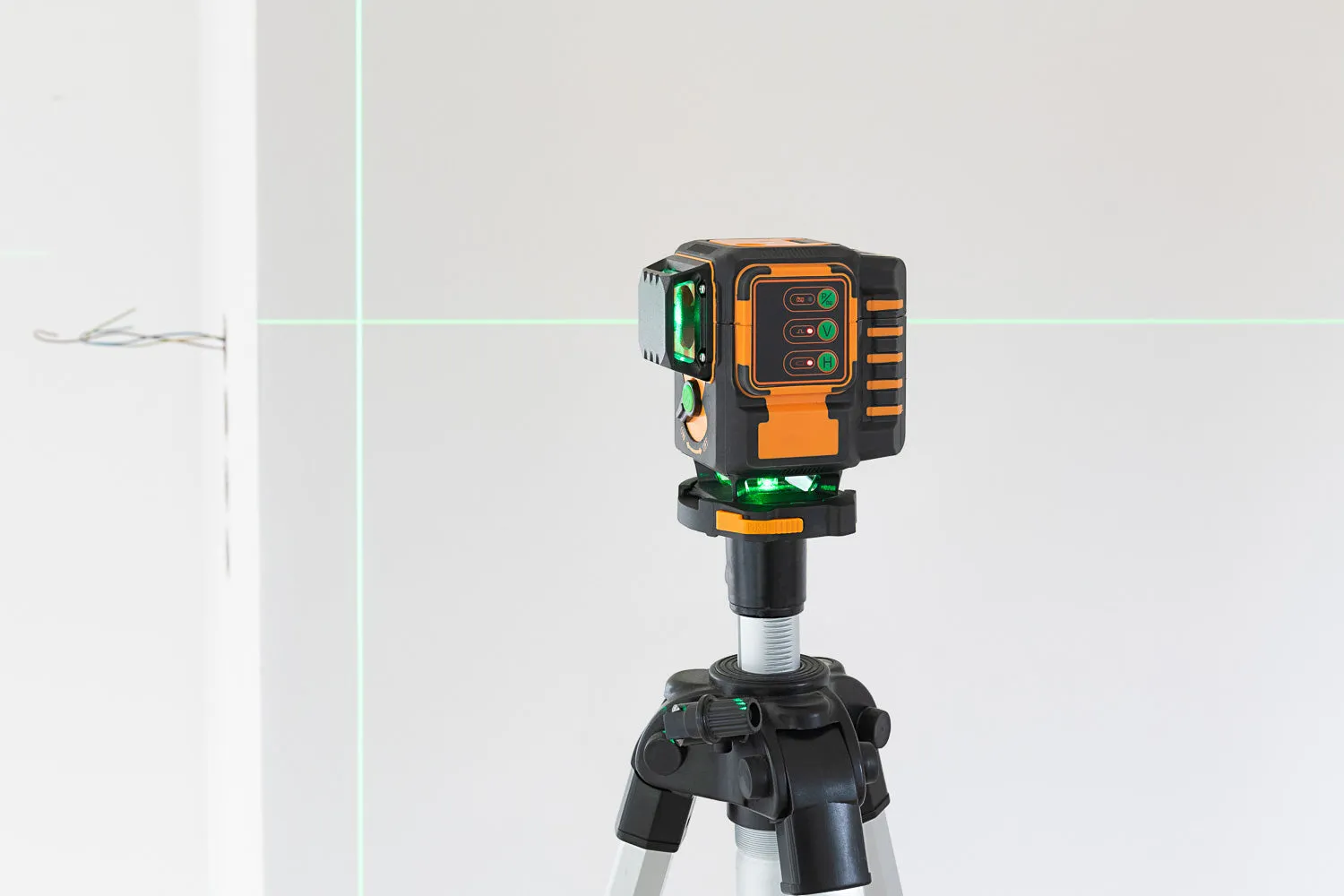

5/8“ thread for use with tripods etc. (bottom / face adaptor)
-
1/4“ thread for use with adaptor etc. (top side)
-

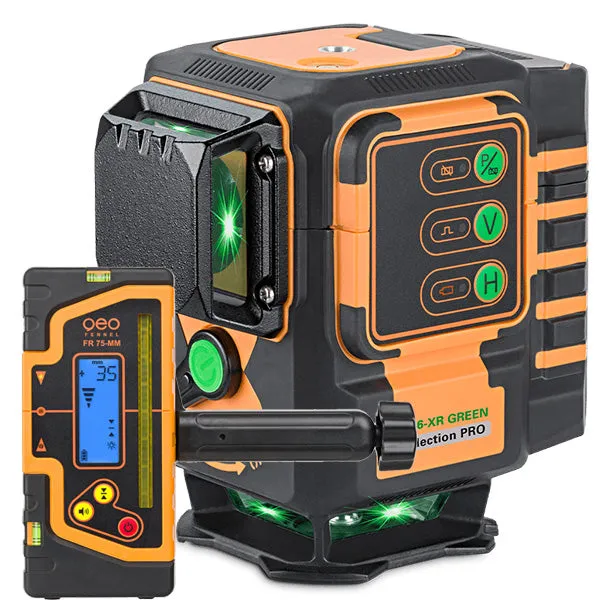

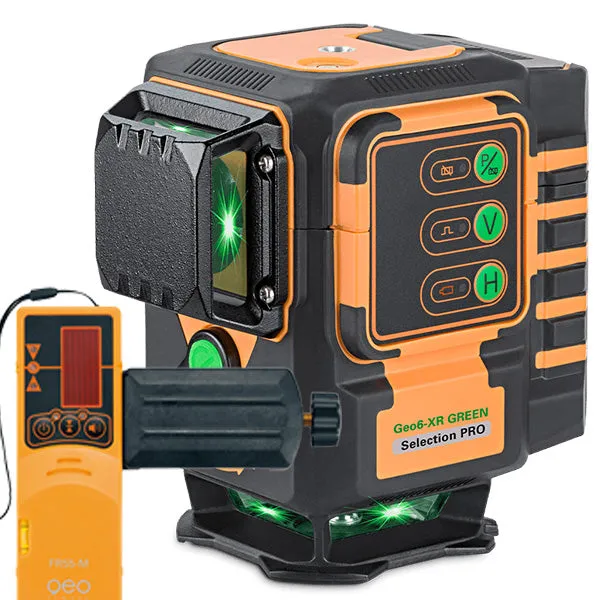

Use with receiver FR 75-MM / FR 55 / FR 55-M (optional)

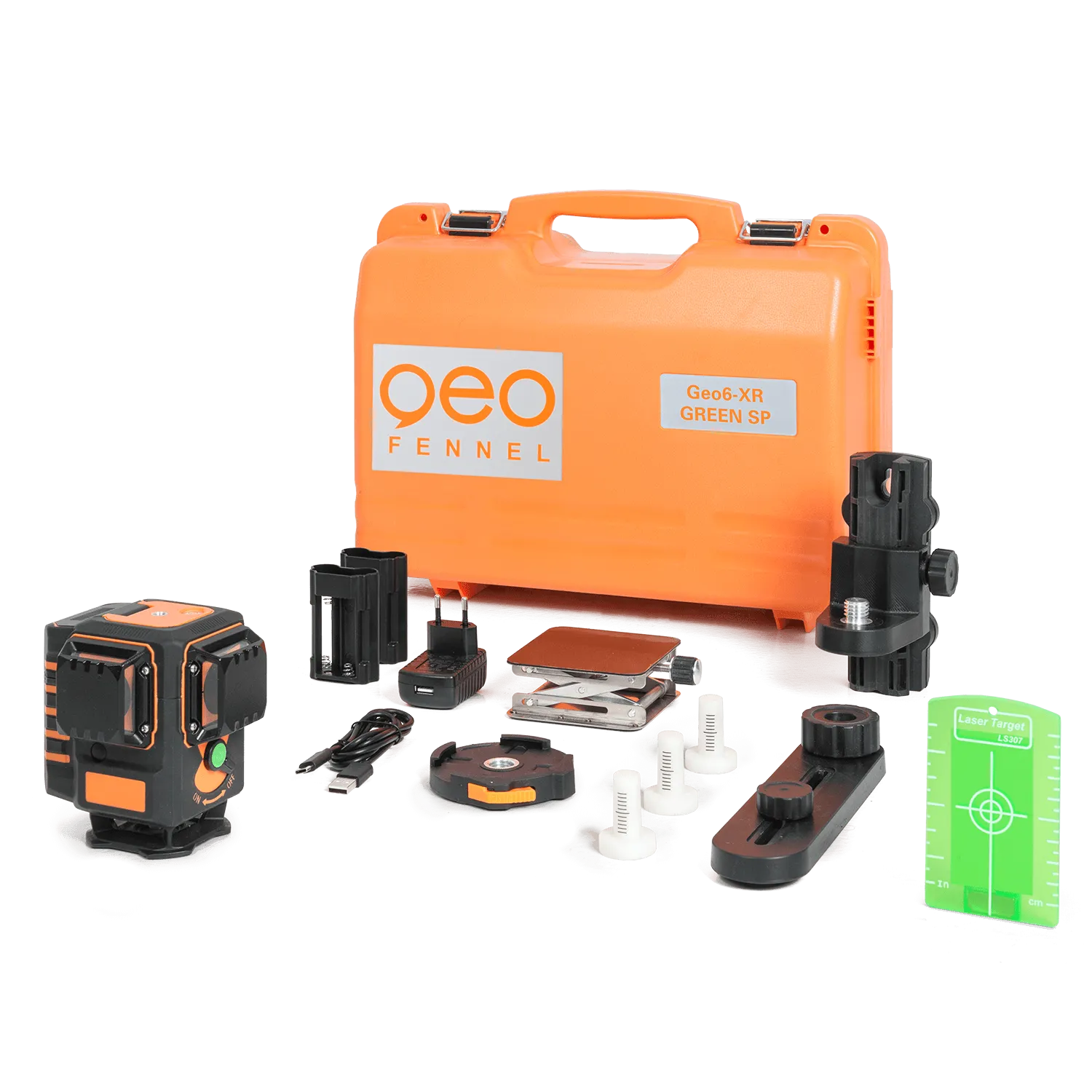

Includes
-
Li-Ion battery
-
Battery case for alkaline batteries
-
Height adjustable platform
-
Wall-mount
-
Support rail
-
20 mm Fixed height adaptor with 5/8“
-
3x Height measurement pins
-
Magnetic target
-
Container
Specifications
-
Self-levelling range ± 3°
-
Accuracy ± 2 mm / 10 m
-
Laser diode / class green / 2
-
Working range without receiver 40 m* (radius)
-
Working range with receiver 60 m** (radius)
-
Operating time / Power supply
-
1 x 360° 15 h / Li-Ion
-
2 x 360° 7 h / Li-Ion
-
3 x 360° 5 h / Li-Ion
-
Dust/water-protection IP 54
-
Temperature range -10°C to 45°C
-
Size 115 x 96 x 118 mm
-
Weight (instrument with battery) 0,8 kg
-
* depending on room illumination
-
** depending on direction of laser
